Description: Heating sources include steam, electricity, far-infrared, and gas electric dual-use, available for users to choose from

Category: Non standard oven
Detailed description:

Explain:
1、 Heating sources include steam, electricity, far-infrared, and gas electric dual-use for users to choose from
2、 Usage temperature: Steam heating 50-130 ℃, high 140 ℃
3、 Electricity consumption, far-infrared temperature range of 50-300 ℃, can be matched with automatic control system or computer control system for users to choose from
4、 Common steam pressure 0.2-0.8mpa (2-8kg/cm2)
5、 Calculated based on Type 1 for electric heating, 15kw, practical 5-8kw/h
6、 Special requirements should be indicated at the time of ordering
7、 Non standard oven price negotiable
8、 If the operating temperature is greater than 140 ℃ or less than 60 ℃, it should be specified when ordering

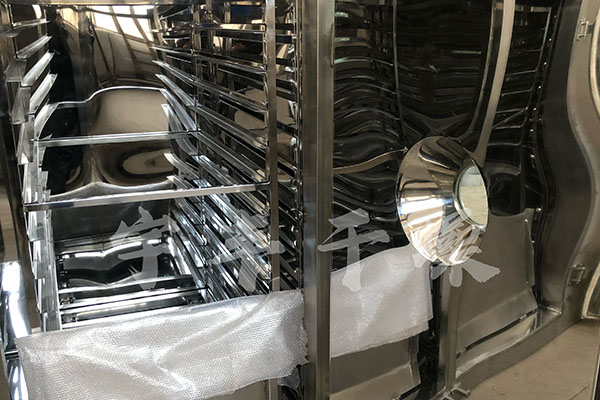

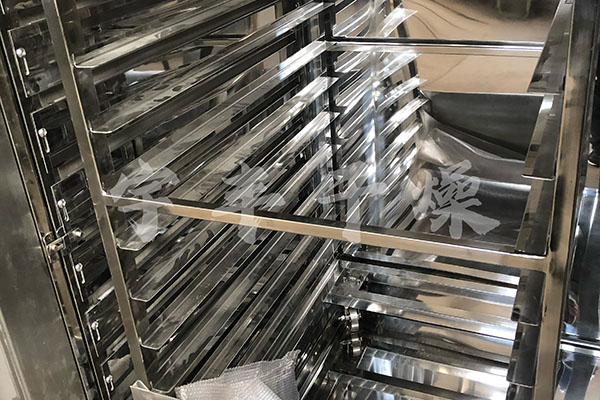

9、 Our factory's drying cars have uniform drying tray sizes and can be interchanged

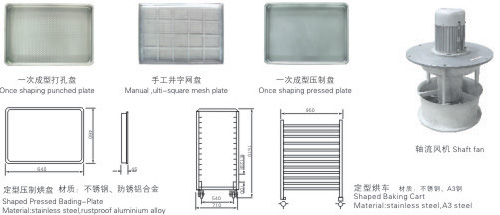

10、 Drying tray size: 460X640X45mm
Overview:

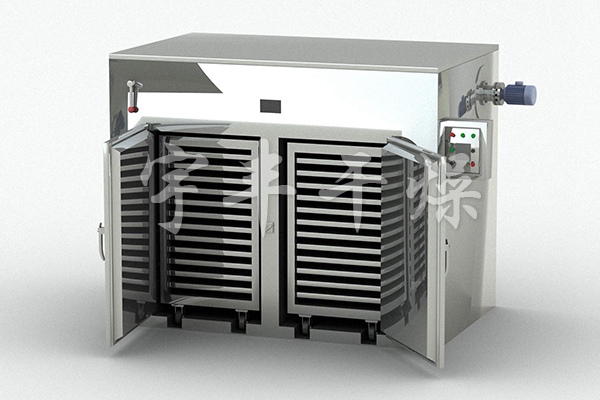

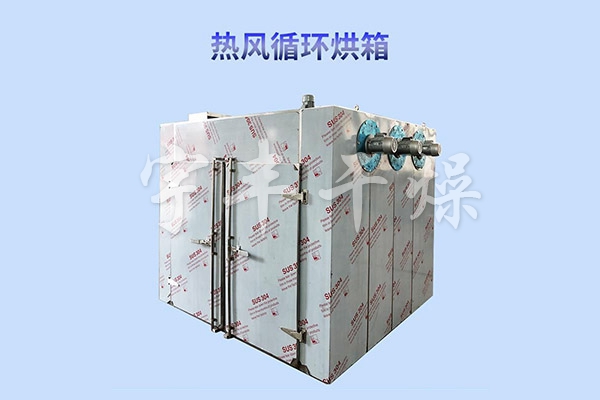

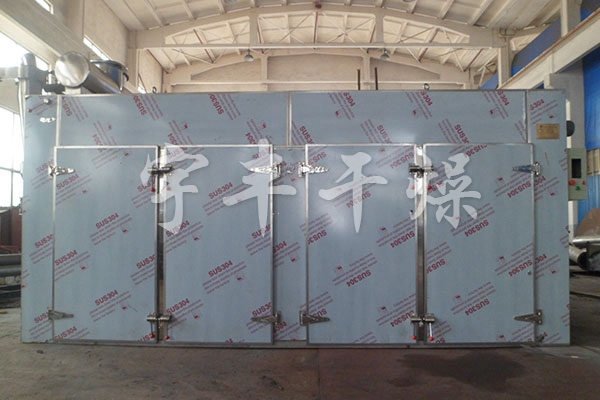

The CT-C series hot air circulation oven is equipped with a low-noise and high-temperature resistant axial flow fan and an automatic temperature control system. The entire circulation system is fully enclosed, which increases the thermal efficiency of the oven from the traditional drying room 3-7% to the current 35-45%, and the thermal efficiency can reach 50%. The successful design of CT-C type hot air circulation oven has brought China's hot air circulation oven to the domestic and international level. It has saved a lot of energy for our country and improved the economic efficiency of enterprises. In 1990, the Medical Administration issued an industry standard with the unified model RXH.
Application:
Suitable for heating, curing, drying, and dehydration of materials and products in industries such as pharmaceuticals, chemicals, food, agricultural and sideline products, aquatic products, light industry, and heavy industry. Such as raw materials, medicinal herbs, traditional Chinese medicine decoction pieces, extracts, powders, granules, granules, water pills, packaging bottles, pigments and dyes, dehydrated vegetables, dried fruits and vegetables, sausages, plastic resins, electrical components, baking paints, etc.
Feature
Most of the hot air circulates inside the box, with high thermal efficiency and energy savings. By utilizing forced ventilation, the box is equipped with adjustable air distribution plates, ensuring even drying of materials. The heat source can be steam, hot water, electricity, or far-infrared, with a wide range of options. The whole machine has low noise and balanced operation. Temperature self-control, easy installation and maintenance. Widely applicable and capable of drying various materials, it is a universal drying equipment.

Technical parameter table:
