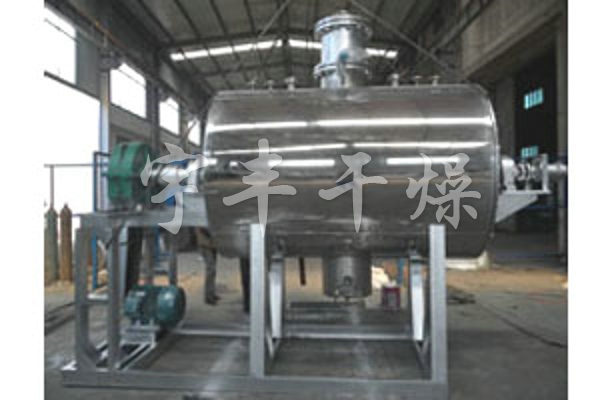

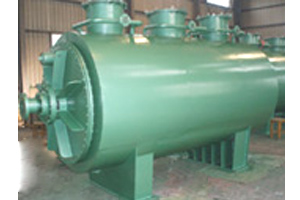

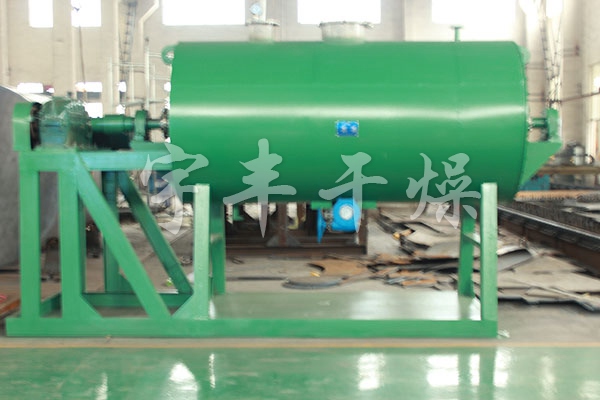

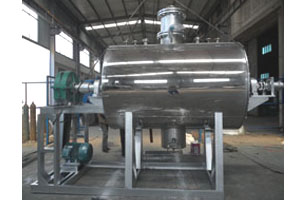

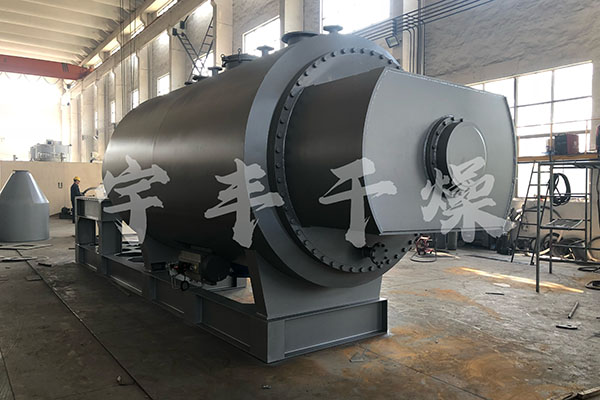

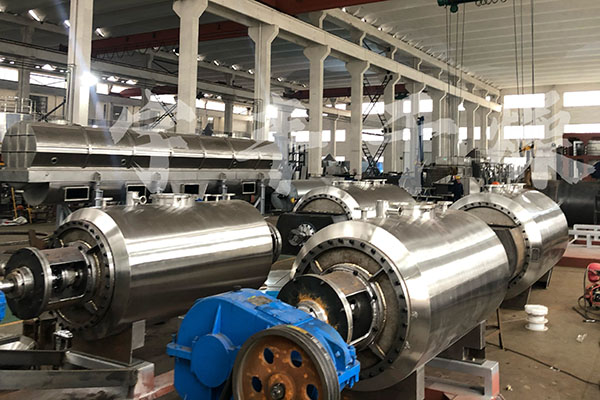

ZKG vacuum rake dryer-Changzhou Yufeng Drying Equipment Co., Ltd.

Description: This machine adopts interlayer heating and internal stirring, with a large heat transfer surface and high thermal efficiency
Category: Vacuum drying machine
Detailed description:

Performance characteristics:

This machine adopts interlayer heating and internal stirring, with a large heat transfer surface and high thermal efficiency.
The machine is equipped with agitation to create a continuous circulation of materials inside the cylinder, further improving the uniformity of material heating.
This machine is equipped with agitation to facilitate the smooth drying of slurry, paste, and paste like materials.
Application:
● Drying of the following materials is carried out in industries such as pharmaceuticals, food, and chemicals.
● Suitable for paste like, paste like, and powdery materials.
● Thermally sensitive materials that require low-temperature drying.
● Easily oxidizable, explosive, strongly irritating, and highly toxic materials.
● Require the recycling of materials containing organic solvents.

Technical parameter table

Project		Model
Name	Unit	ZKG-500	ZKG-750	ZKG-1000	ZKG-1500	ZKG-2000	ZKG-3000	ZKG-4000	ZKG-5000	ZKG-6000
Working volume	L	300	450	600	900	1200	1800	2400	3000	3600
Heating area	m2	3.2	4.4	5.1	6.3	8.1	10.6	12.3	14.2	16.5
Stirring speed	rpm	8~18
Power	Kw	4	5.5	5.5	7.5	7.5	11	15	18.5	22
Interlayer design pressure	Mpa	0.3
Pressure inside the cylinder	Mpa	-0.092~-0.096
Note: The evaporation rate of water is related to the characteristics of the material and the drying temperature. As the product is constantly updated, there may be parameter changes without prior notice.
