SXG series rotary flash dryer-Changzhou Yufeng Drying Equipment Co., Ltd.

Overview:The SXG series rotary flash dryer is a product of our factory's introduction and absorption of foreign technology.
Category:Flash drying machine
Detailed description:

Overview:
The SXG series rotary flash dryer is a new type of drying equipment developed by our factory based on the introduction and absorption of foreign technology. This machine has a reasonable design, compact structure, wide applicability, high production capacity, good product quality, high efficiency, energy saving, and can complete drying, crushing, and screening in one device at a time, eliminating environmental pollution. The overall performance of the machine has reached the technical level.

Principle:

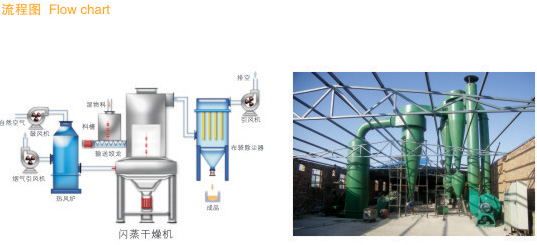

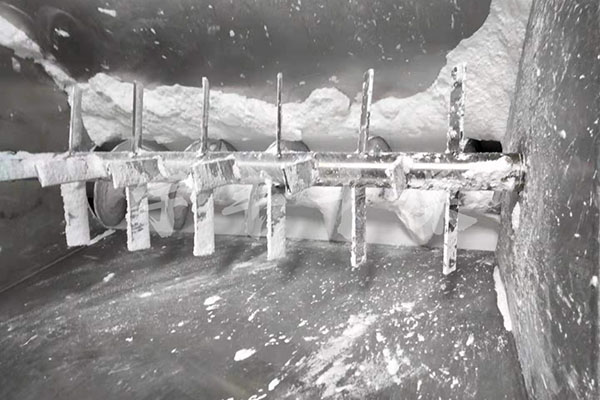

Hot air enters the mixing and crushing drying chamber from the bottom of the dryer through the inlet pipe at a suitable spraying speed, generating strong shearing, blowing, and rotating effects on the material. As a result, the material is subjected to centrifugation, shearing, collision, and friction, leading to particle reduction and enhanced mass and heat transfer. At the bottom of the dryer, larger and wetter particle clusters are mechanically crushed by the agitator, while particles with lower moisture content and smaller particle size are carried up by the rotating airflow and further dried during the upward process. Due to the rotating flow of gas-solid phases, the inertia of the solid phase is greater than that of the gas phase, and the relative velocity between the solid and gas phases is higher, which enhances the mass and heat transfer between the two phases. Therefore, the production intensity of this machine is high.

Features:
● Multiple feeding devices are available for selection, ensuring continuous and stable feeding without bridging during the process.
● A special cooling device is installed at the bottom of the dryer to prevent material deterioration in the high-temperature zone at the bottom.
● Special pneumatic sealing device and bearing cooling device effectively extend the service life of the transmission part.
● The special air distribution device reduces equipment resistance and effectively provides the processing air volume of the dryer.
● The drying chamber is equipped with grading rings and swirl blades, and the material fineness and final moisture content can be adjusted. (If the final moisture content of calcium carbonate can be adjusted to ≤ 0.1%)
● Compared to other drying methods, it can effectively increase the specific gravity of materials.
● The drying chamber has a high circumferential gas velocity and short material retention time, effectively preventing material sticking to walls and thermal sensitive material deterioration, achieving fast, small equipment, and large-scale production.

Suitable materials:
● Inorganic substances: boric acid, calcium carbonate, hydroxides, copper sulfate, iron oxide, barium carbonate, antimony trioxide, various metal hydroxides, various heavy metal salts, synthetic cryolite, etc.
● Organic compounds: atrazine (pesticide insecticide), lauric acid, benzoic acid, benzoic acid, fungicide, sodium oxalate, cellulose acetate, etc.
● Ceramics: kaolin, silica, clay.
● Dyes: anthraquinone, black iron oxide, indigo pigment, butyric acid, titanium hydroxide, zinc sulfide, various azo dye intermediates.
● Food category: soy protein, gelatinous starch, distiller's grains, wheat sugar, wheat starch.

Technical parameter table

Model	Host internal management（mm）	Processing air volume（m3/h）	Evaporation water volume（kg/h）	Installed capacity（KW）	Height（m）	Occupy the plane（m2）
SXG-4	400	1150-2300	58-73	21.4	4.6	27
SXG-6	600	2500-5100	130-163	34.2	5.5	39
SXG-8	800	4500-9000	238-297	63.5	6.0	40
SXG-10	1000	7000-13500	345-430	68	6.5	55
SXG-12	1200	10000-20000	515-645	94	6.8	62
SXG-14	1400	16600-28000	730-910	130	7.0	89
SXG-16	1600	18000-38100	962-1203	160	7.2	160

Note: 1. The water evaporation rate is calculated based on an inlet air temperature of 200 ℃ and an outlet air temperature of 80 ℃. 2. The installed capacity is the basic data and can be changed according to material properties. 3. The land area is arranged according to the actual situation, and the data in the table is for reference only.
