Type (GMP) oven-Changzhou Yufeng Drying Equipment Co., Ltd.

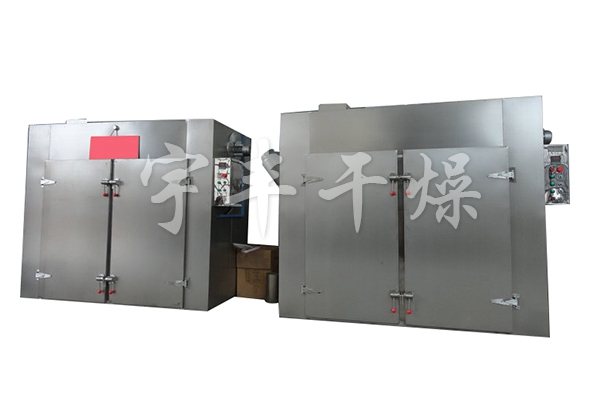

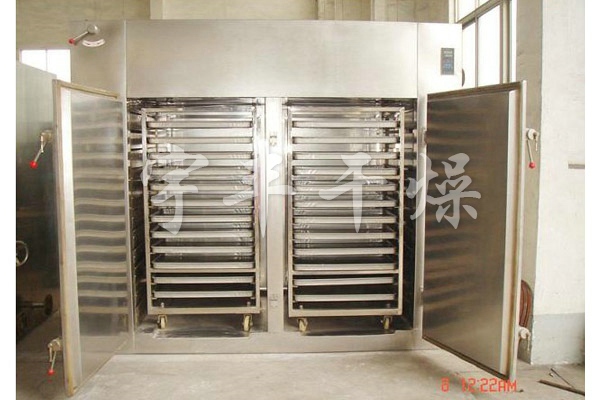

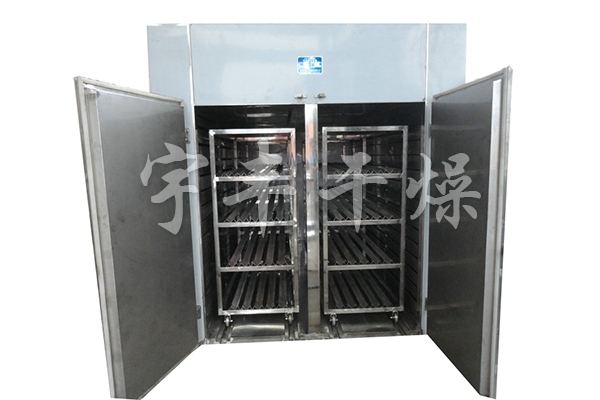

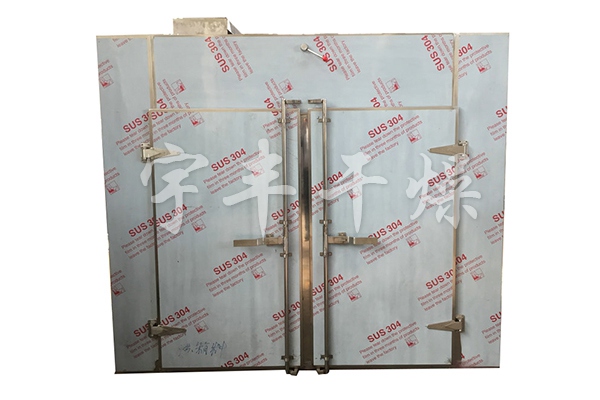

Type (GMP) oven

Product Overview: Summary: There are three types of heating sources: steam, electricity, and dual-purpose electric steamCategory: Non standard ovenDetailed description:Feature:● There are three types of heating sources: steam, electricity, and dual-purpose electric steam.● Usage temperature: Steam heating 50-140 ℃

Product Details
Photo Gallery
Animation

Summary: There are three types of heating sources: steam, electricity, and dual-purpose electric steam

Category: Non standard oven
Detailed description:

Feature:
● There are three types of heating sources: steam, electricity, and dual-purpose electric steam.
● Usage temperature: Steam heating 50-140 ℃, up to 150 ℃; Electric heating at 50-350 ℃;
● The temperature is automatically controlled and recorded by a recorder;
● The inner walls of the box are fully welded, and all transition points are rounded with no dead corners.
● The whole machine has good sealing performance, and the unique guide rail sealing device ensures the sealing performance of the whole machine;
● Air inlet matched with air filter; The dehumidification outlet is equipped with a medium efficiency air filter.
● Double door oven with mechanical interlocking of two doors;
● All components inside the oven can be quickly disassembled and installed for easy cleaning;
● The control system is equipped with text displays and touch screens for selection; The whole machine meets the requirements of GMP

Technical parameter table

Technical Parameters Model and Specifications	Drying capacity per time (Kg)	Fan power (KW)	Consumption of steam (Kg/h)	Drying car (vehicle)	Baking dish (only)	External dimensions L×W×H(mm)	Temperature difference between top and bottom (℃)
GMP-0	35	0.45	8	/	16	1130×1100×1750	±2
GMP-I	120	0.45	18	2	48	2300×1200×2000	±2
GMP-II	240	0.9	36	4	96	2300×2200×2000	±2
GMP-III	360	1.35	54	6	144	3430×2200×2000	±2
GMP-IV	480	1.8	72	8	192	4460×2200×2290	±2
