Product Overview: After being heated by clean air, it enters the drying tower and is transformed into tiny droplets using a two fluid (or three fluid) nozzle in the hot air inside the tower. It undergoes rapid heat exchange with the hot air, evaporates the water (or solvent) in the liquid material, and is discharged with the hot air to obtain powdered products.
Description: After heating the clean air, it enters the drying tower and uses a two fluid (or three fluid) nozzle in the hot air inside the tower to transform various liquid materials into tiny liquids
Category: spray dryer
Detailed description:

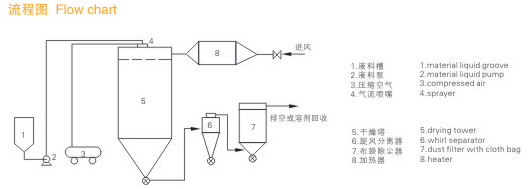

Principle:
After being heated by clean air, it enters the drying tower and is transformed into tiny droplets using a two fluid (or three fluid) nozzle in the hot air inside the tower. It undergoes rapid heat exchange with the hot air, evaporates the water (or solvent) in the liquid material, and is discharged with the hot air to obtain powdered products.
Feature:
● Especially effective for sticky, paste like, and paste like materials, which cannot be replaced by other equipment.
● Experimental variety and wide application of low-temperature drying.
● The nozzle structure is simple, easy to maintain, and has low operating costs.
Technical parameters:
| Parameters/Model | 5 | 25 | 50 | 100 | 150 | 200 | |
| Evaporation capacity | △t=150℃～90℃ | 1.5 | 7.5 | 15 | 30 | 45 | 60 |
| △t=200℃～100℃ | 2.5 | 12.5 | 25 | 50 | 75 | 100 | |
| △t=250℃～100℃ | 3.75 | 18.75 | 37.5 | 75 | 112.5 | 150 | |
| △t=300℃～100℃ | 5 | 25 | 50 | 100 | 150 | 200 | |
| △t=350℃～110℃ | 6 | 30 | 60 | 120 | 200 | 240 | |
| Compressed air m3/nin | 0.9 | 0.9 | 1.1 | 1.5 | 2.7 | 3.4 | |
| Compressed air pressure Mpa | 0.4 | 0.6 | 0.7 | ||||
| Heat source method | Electric, electric+steam, coal-fired (oil) hot blast stove | ||||||
| Heating load 104KCal/h | 1 | 5 | 10 | 20 | 30 | 40 | |
| Fan power KW | 0.75 | 4 | 7.5 | 11 | 15 | 18.5 | |
| Note: Some parameters may be adjusted according to different materials during design, and the design shall prevail. | |||||||
