XF series horizontal boiling dryer-Changzhou Yufeng Drying Equipment Co., Ltd.

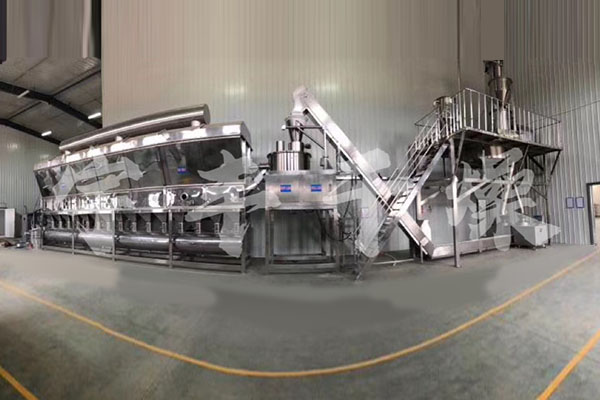

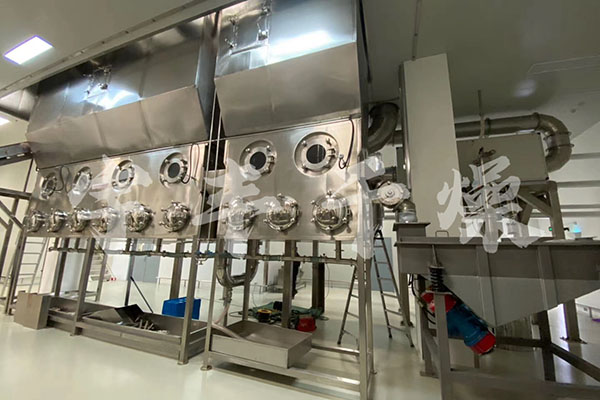

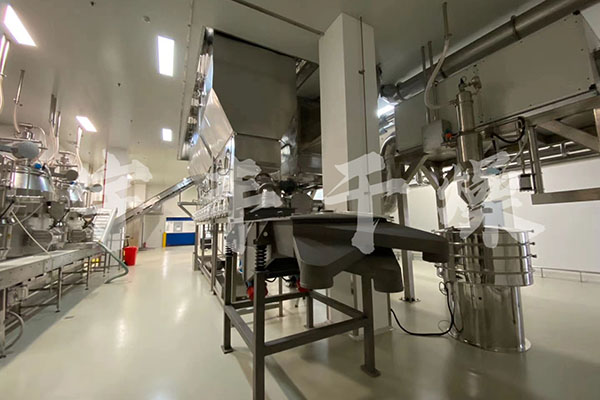

Product Introduction
Boiling dryer, also known as fluidized bed dryer, is composed of air filter, heater, boiling bed host, cyclone separator, bag filter, high-pressure centrifugal fan, and operation console. Due to the different properties of the drying materials, when matching with dust removal equipment, it can be considered as needed. Both cyclone separator and bag filter can be selected at the same time, or one of them can be selected. Generally speaking, for drying materials with high specific gravity such as granules and granular materials, only cyclone separator is needed. For small granular and powdery materials with light specific gravity, bag filter is required, and pneumatic feeding device and belt conveyor are available for selection.
The granular solid material is fed into the fluidized bed dryer by a feeder, and the filtered clean air is heated and sent to the bottom of the fluidized bed by a blower to come into contact with the solid material through a distribution plate, forming fluidization and achieving gas-solid heat and mass exchange. After the material is dried, it is discharged from the discharge port, and the exhaust gas is discharged from the top of the fluidized bed through the cyclone dust collector group and bag filter to recover solid powder and then discharged. Steam, electric, and hot air stoves can all be equipped (according to user requirements).

Working principle
Clean hot air is distributed into the bed through the valve plate, and the wet material entering from the feeder is boiled by the hot air. Due to the extensive contact between hot air and materials, the process of heat and mass transfer is enhanced, so it can be dried in a relatively short time. If using a continuous type, the material enters from one end of the bed, undergoes boiling and drying for several seconds to minutes, and automatically flows out from the other end of the bed. This device generally operates under negative pressure.

Adapt to materials
◎Drying operations for pharmaceuticals, chemical raw materials, food, grain processing, and feed. For example, drying and dehumidification of raw materials, tablet granules, traditional Chinese medicine granules, health foods, beverage granules, corn germ, feed, plastic resins, citric acid, and other powdered materials. The suitable material particle size is generally 0.1-6mm, with a preferred particle size of 0.5-3mm.

Installation instructions
◎Each device should be placed flat, fixed with foot screws, and all components should be well sealed.

◎The fan can be placed outdoors or in a self built soundproof room. The layout can be adjusted according to specific circumstances.

Specification and Model Technical Parameters	XF0.25-1 (formerly XF10)	XF0.25-2 (formerly XF20)	XF0.25-3 (formerly XF30)	XF0.25-6	XF0.3-2	XF0.3-4	XF0.3-6	XF0.3-8	XF0.3-10	XF0.4-4	XF0.4-6
Bed area (m2)	0.25	0.5	1.0	1.5	0.6	1.2	1.8	2.4	3.0	1.6	2.4
Drying capacity (kg h2O/h)	10-15	20-25	30-45	52-75	-30	42-60	63-90	84-120	105-150	56-80	84
Fan power (kw)	5.5	7.5	15	twenty two	7.5	18.5	30	37	48	30	37
Inlet air temperature (oC)	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140
Material temperature (oC)	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60
Overall dimensions (host) L×W×H (m)	1×0.6 ×3.35	2×0.6 ×3.35	4×0.6 ×3.35	6×0.6 ×3.35	2×0.70 ×3.4	4×0.7 ×3.4	6×0.7 ×3.4	8×0.7 ×3.4	10×0.7 ×3.4	4×1 ×3.58	6×1 ×3.58
Floor area(m2)	18	25	35	40	25	38	45	56	70	18	56

Specifications Model Technical Parameters	XF0.4-8	XF0.4-10	XF0.4-12	XF0.5-4 (formerly XF50)	XF0.5-6	XF0.5-8	XF0.5-10	XF0.5-12	XF0.5-14	XF0.5-16	XF0.5-18
Bed area (m2)	3.2	4.0	4.8	2.0	3.0	4.0	5.0	6.0	7.0	8.0	9.0
Drying capacity (kg h2O/h)	112-160	140-200	168-240	70-100	140-200	140-200	175-250	210-300	245-350	280-400	315-450
Fan power (kw)	44	66	66	30	66	66	90	90	150	150	165
Inlet air temperature (oC)	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140	120-140
Material temperature (oC)	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60	40-60
Overall dimensions (host) L×W×H (m)	8×1×3.58	10×1×3.58	12×1×4.1	4×1.2×4.1	6×1.2×4.1	8×1.2×4.1	10×1.2×4.1	12×1.2×4.1	14×1.2×4.1	16×1.2×4.1	18×1.2×4.1
Floor area(m2)	74	82	96	50	70	82	100	140	180	225	268

Note:

1. Feeding method: 1) Star feeding; 2) Star feeding and pneumatic conveying combined; 3) Belt conveying; 4) User-defined.

2. Automated production can be realized.

3. In addition to the above models, special designs can be made for users.

4. Depending on the materials, the fan power is also different.
